螺牙規格：公制MG牙，德制PG牙，英制G管螺牙，美制NPT錐螺牙。
產品材質：A.C.F部分采用304不銹鋼制成，E采用PA66工程塑料，B,D采用耐高溫硅膠制成.

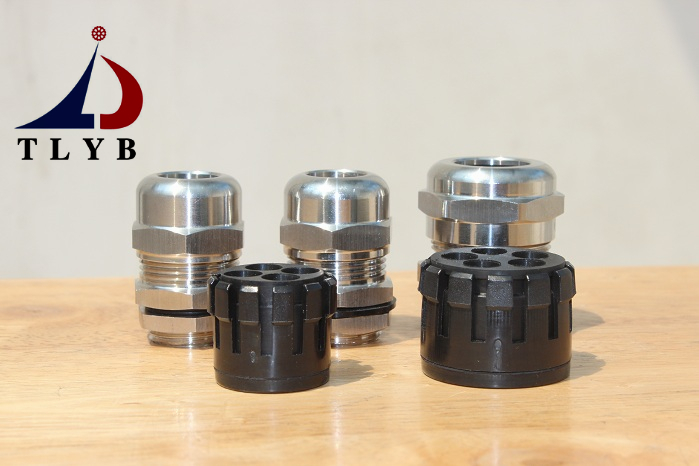

產品特性：本款多孔不銹鋼防水接頭為多出線孔型設計，功能可以將多條電纜線同時整合在一個出線孔上，不僅能大幅縮減施工時間，降低成本，亦可減少出線孔所占用的空間。 本款高端防爆不銹鋼電纜固定頭具有高安全性和穩定性，對抗惡劣環境具有耐腐蝕.
工作溫度：-40°C至120°C，短時可達150°C.
本產品全數通過EX dII BT4防爆認證，接受定制316.316L.阻燃V0及其他鋼件加工.
|
螺牙規格
|
產品型號
|
螺紋外徑
|
穿線范圍
|
螺紋長度
|
包裝
|
|
C1 mm
|
O.D-C1 mm
|
C2 mm
|
PCS
|
|
M16
|
MG16-H6-02
|
16
|
2.1 ~ 1.4
|
8
|
50
|
|
M18
|
MG18-H6-02
|
18
|
2.1 ~ 1.4
|
9.5
|
|
M20
|
MG20-H5-03
|
20
|
3 ~ 1.5
|
9.5
|
|
M25
|
MG25-H5-06
|
25
|
6 ~ 3
|
12
|
20
|
|
MG25-H6-05
|
25
|
5 ~ 2
|
12
|
|
MG25-H7-04
|
25
|
5 ~ 3
|
12
|
|
M32
|
MG32-H5-08
|
32
|
8 ~ 5
|
13
|
10
|
|
MG32-H6-06
|
32
|
6 ~ 3
|
13
|
|
MG32-H6-07
|
32
|
7 ~ 4
|
13
|
|
PG11
|
PG11-H6-02
|
18.6
|
2.1 ~ 1.4
|
10
|
50
|
|
PG16
|
PG16-H5-03
|
22.4
|
3 ~ 1.5
|
10
|
|
PG21
|
PG21-H5-06
|
28.3
|
6 ~ 3
|
12
|
20
|
|
PG21-H6-05
|
28.3
|
5 ~ 2
|
12
|
|
PG21-H7-04
|
28.3
|
5 ~ 3
|
12
|
|
PG29
|
PG29-H5-08
|
37
|
8 ~ 5
|
13
|
10
|
|
PG29-H6-06
|
37
|
6 ~ 3
|
13
|
|
PG29-H6-07
|
37
|
7 ~ 4
|
13
|
|
G3/8"
|
G3/8-H6-02
|
16.6
|
2.1 ~ 1.4
|
10
|
50
|
|
G3/4"
|
G3/4-H5-06
|
26.4
|
6 ~ 3
|
12
|
20
|
|
G3/4-H6-05
|
26.4
|
5 ~ 2
|
12
|
|
G3/4-H7-04
|
26.4
|
5 ~ 3
|
12
|
|
G1"
|
G1-H5-08
|
33.2
|
8 ~ 5
|
13
|
10
|
|
G1-H6-06
|
33.2
|
6 ~ 3
|
13
|
|
G1-H6-07
|
33.2
|
7 ~ 4
|
13
|
|
NPT3/8"
|
NPT3/8-H6-02
|
16.6
|
2.1 ~ 1.4
|
10
|
50
|
|
NPT3/4"
|
NPT3/4-H5-06
|
26.4
|
6 ~ 3
|
12
|
20
|
|
NPT3/4-H6-05
|
26.4
|
5 ~ 2
|
12
|
|
NPT3/4-H7-04
|
26.4
|
5 ~ 3
|
12
|
|
NPT1"
|
NPT1-H5-08
|
33.2
|
8 ~ 5
|
13
|
10
|
|
NPT1-H6-06
|
33.2
|
6 ~ 3
|
13
|
|
NPT1-H6-07
|
33.2
|
7 ~ 4
|
13
|
